An automated driveway gate is one of the most effective ways to secure your Los Angeles property, enhance privacy, and raise curb appeal. But for families with young children or pets, a moving multi-hundred-pound steel structure also represents a serious potential hazard if not properly equipped.
Ensuring your driveway entrance is as safe as it is secure requires the right technology. Installing dedicated child safety sensors for electric gates isn’t just a smart precaution, it’s an essential layer of protection mandated by modern safety regulations.
At Star Steel, we’ve spent over 30 years designing, manufacturing, and automating luxury gates out of our Van Nuys facility. We believe true luxury means total peace of mind. Here is everything you need to know about choosing, integrating, and maintaining child safety sensors to keep your home completely secure.
Why Child Safety Sensors Are Essential for Electric Gates
Children are naturally curious, quick on their feet, and often unaware of the power behind an automated driveway gate. Standard motor stops alone are not enough to prevent accidental impacts or dangerous pinch points.
Modern child safety sensors for electric gates serve as an active defense system. They detect moving objects before or during contact, instantly halting gate travel and reversing its direction to prevent entrapment or injury.
AUTOMATED GATE SAFETY SYSTEM ARCHITECTURE
│
┌───────────────────────────┴───────────────────────────┐
▼ ▼
PRIMARY PROTECTION (Internal) SECONDARY PROTECTION (External)
Motor Torque Monitoring Infrared Photo-Eye Beams
Obstruction Sensing Monitored Safety Edges
Instant Auto-Reverse Ground Vehicle Loops
Key Types of Electric Gate Safety Sensors
Achieving 100% safety compliance requires a multi-layered sensor approach tailored to your driveway layout, whether you operate a heavy sliding gate or a grand bi-parting swing gate.

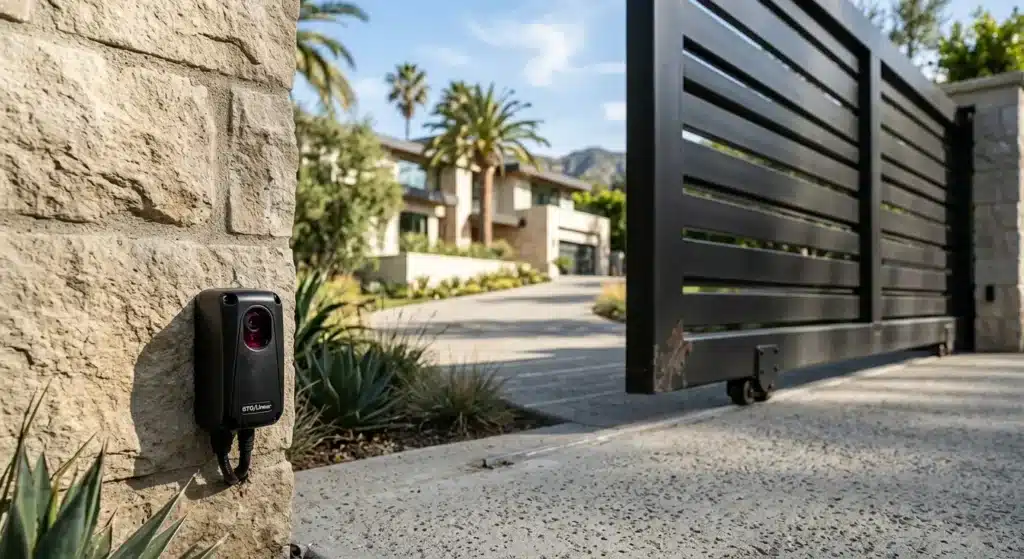

1. Photoelectric Safety Beams (Photo-Eyes)
Photo-eyes project an invisible infrared beam across the width of your driveway opening. If a child, pet, or toy crosses the beam while the gate is closing, the circuit breaks and immediately signals the gate operator to stop and reverse.
- Thru-Beam Sensors: Highly reliable long-range sensors using a separate transmitter and receiver on opposite pillars.
- Retro-Reflective Sensors: Compact option utilizing a single powered unit and a opposite-side reflector.
Local LA Tip: Estates in sloped areas like Bel Air or Sherman Oaks often experience dust, fallen leaves, or sun glare. High-grade, weather-sealed photo-eyes ensure reliable detection without false triggers from Southern California weather elements.
2. Monitored Contact Safety Edges
Mounted along the leading vertical edge of sliding gates or the bottom rail of swing gates, safety edges act as tactile pressure-sensitive bumpers. If the edge touches an obstruction, even with soft force, it triggers an immediate motor reversal.
3. Inherent Motor Reversal (UL 325 Standard)
Modern gate operators installed by licensed professionals include internal torque sensors. If the motor detects unexpected resistance while moving, it shuts down instantly, serving as an integrated secondary safeguard.
Understanding UL 325 & ASTM F2200 Standards
To legally protect your property and ensure maximum safety, your automation system must comply with updated UL 325 (Safety Standards for Gate Operators) and ASTM F2200 (Construction Standards) guidelines.
| Feature | Requirement for Child Safety | Star Steel Custom Solution |
| Dual Entrapment Protection | Requires at least two monitored safety devices (e.g., photo-eyes + safety edge) | Built-in dual sensor wiring on all commercial-grade LiftMaster & Viking operators |
| Picket Spacing Guarding | Screen mesh or narrow spacing (under 2.25 inches) up to 4 ft high on sliding gates | Hand-welded custom steel mesh engineered directly into the panel design |
| Pinch-Point Protection | Covers over hinges, rollers, and drive chains to eliminate finger entrapment | Flush-mounted roller covers and internal chain tracks fabricated in-house |
| Separate Pedestrian Access | Pedestrians must NOT use the vehicular gate opening | Custom-matched side pedestrian gate with keypad or smart intercom access |
How Star Steel Builds Safety Into Every Custom Gate
Unlike off-the-shelf gate packages made with flimsy materials and generic hardware, Star Steel fabricates every gate panel 100% in-house at our local Van Nuys facility. This complete manufacturing control allows us to integrate child safety features directly into the architectural steel structure rather than slapping on aftermarket additions.
- Precision In-House Welding: We design gate frames with zero sharp edges, concealed pinch points, and smooth bottom profiles.
- Heavy-Duty Commercial Operators: We equip our custom gates with top-of-the-line operators (such as LiftMaster and Viking) featuring modern battery backups, smart app controls, and multi-sensor support [Link to Star Steel Gate Automation Service Page].
- Dedicated Pedestrian Gate Integration: To keep kids away from moving driveway gates, we build matching pedestrian side gates equipped with child-proof latches and smart access control [Link to Star Steel Access Control Page].
- 24/7 Safety Inspections & Repairs: If a sensor misaligns, a lens gets dirty, or an operator alerts an error code, our Los Angeles repair team offers around-the-clock emergency service [Link to Star Steel Gate Repair Service Page].
4 Checklist Items to Test Your Gate’s Safety Today
If your driveway gate was installed over 5 years ago, run this quick visual check to ensure your system is operating safely:
- Check for Dual Sensors: Ensure your gate has both photo-eye sensors AND reversing functionality.
- Test Photo-Eye Obstruction: Wave an object (like a broom handle) through the beam path while the gate is closing. It should reverse instantly without hesitation.
- Inspect Sensor Height: Photo-eyes should be mounted between 5 to 12 inches above the driveway grade to reliably detect small children and low-profile pets.
- Verify Pedestrian Safety: Confirm children use a dedicated side walkway gate rather than walking through an active vehicular entrance.
Protect Your Family with Star Steel
Your family’s safety should never be compromised by an outdated or poorly equipped gate operator. Whether you need to retrofit your existing driveway entrance with modern child safety sensors for electric gates or construct a brand-new, hand-crafted steel estate entrance, Star Steel brings over 30 years of craftsman experience to your doorstep.
Ensure your automated gate meets current California safety laws and protects what matters most.
Call Star Steel today at (818) 885-8979 or visit our Van Nuys facility to speak with an architectural steel and gate automation specialist for a free quote!
